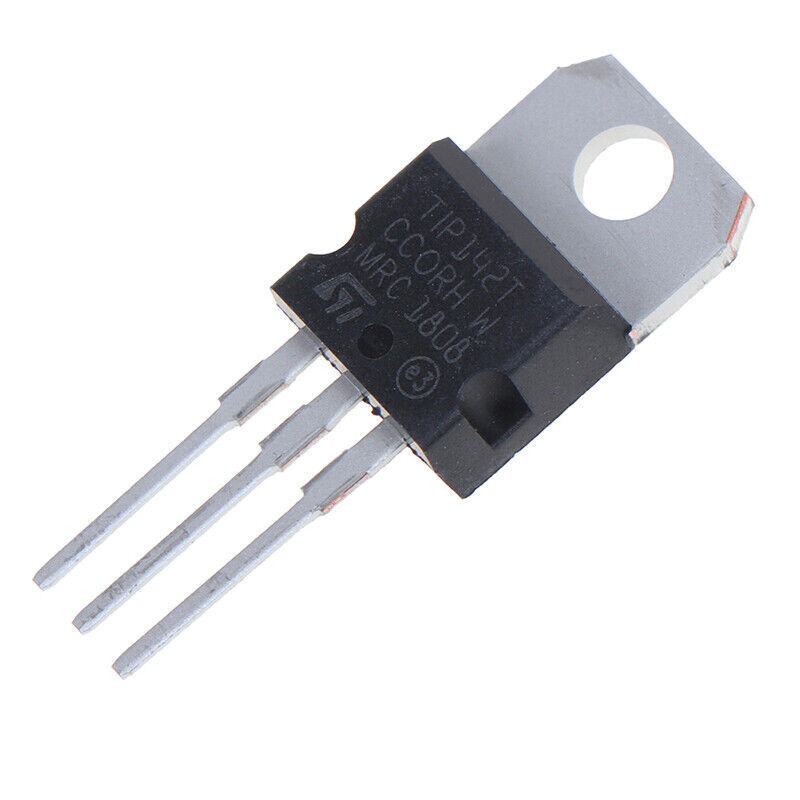

DescriptionTIP142 is an NPN darlington transistor which means that it contains two transistors in a single package which are connected in a special way (which can be seen in the diagram in the following image) to increase the gain of the transistor many times.FeaturesMaterial of Transistor: SiPolarity: NPNMaximum Collector Power Dissipation (Pc): 125 WMaximum Collector-Base Voltage |Vcb|: 100 VMaximum Collector-Emitter Voltage |Vce|: 100 VMaximum Emitter-Base Voltage |Veb|: 5 VMaximum Collector Current |Ic max|: 10 AMax. Operating Junction Temperature (Tj): 150 °CForward Current Transfer Ratio (hFE), MIN: 500Package: TO-220ApplicationAudio amplifiersMotor DriversDrive load of up to 10AAnd many other general purpose applicationsThis transistor can be used wide variety of switching and amplification applications. It can be used for build high power audio amplifier or in the driving stages of audio amplifier. It can also be used as a switch and capable to drive load of upto 10A. With 10A load driving capability it can drive wide variety of loads such as motors, relays, high power transistors etc.Package includes: 1×TIP142T Darlington Transistor NPN 100V 125W 10A TO-220 TIP142Find datasheet here.
