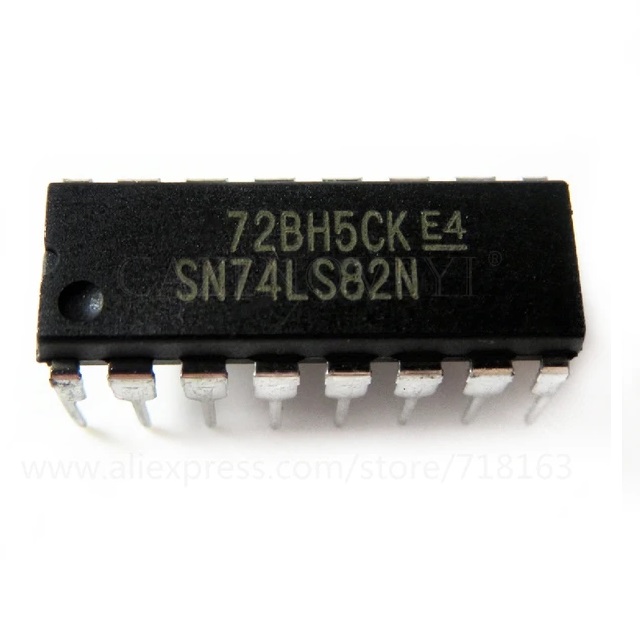

DescriptionThe SN74LS82 is a 2−bit binary full adder in a 14−Lead DIP type package that performs the addition of two 2−bit binary numbers. The sum () outputs are provided for each bit and the resultant carry (C2) is obtained from the second bit. Designed for medium−to−high−speed, multiple−bit, parallel− add/serial−carry applications, this circuit utilizes high−speed, high−fan−out transistor−transistor logic (TTL) and is compatible with both DTL an TTL logic families. The implementation of a single−inversion, high−speed, Darlington−connected serial−carry circuit within each bit minimizes the necessity for extensive “look−ahead” and carry−cascading circuits.Absolute Maximum Ratings: Supply Voltage (Note 1), VCC ………………………………………………… 7V Input Voltage (Note 2), VIN …………………………………………………. 5.5V Operating Ambient Temperature Range, TA ………………………………. 0 to 70C Storage Temperature Range, Tstg …………………………………… −65 to 150C Note 1. Voltage values are with respect to network GND terminal. Note 2. Input signals must be zero or positive with respect to network ground terminal.Applications: Digital Computer Systems Data−Handling Systems Control SystemsDatasheet
