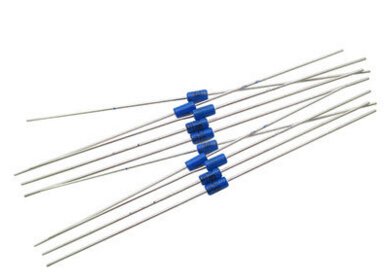

DescriptionControlling the speed of an AC motor or the brightness of an AC light bulb is vastly different from controlling DC electronics. Because AC power constantly reverses direction 50 times a second, you need components that can operate symmetrically. The DB3 DIAC is the industry-standard trigger mechanism for these high-voltage applications.Whether you are designing robust phase-control circuits for workshop ventilation fans, or stocking up student benches for the Electronics Bootcamp, understanding how to utilize the DB3 is a critical milestone in power electronics.The 32V “Dam” AnalogyA DIAC (Diode for Alternating Current) is unique because it works in both directions. Think of it as a pressure relief valve. It completely blocks electrical current from passing through its leads until the voltage pushes against it with a force of approximately 32 Volts.The moment the voltage hits that 32V threshold (known as the breakover voltage, or VBO), the valve “snaps” open, dropping its internal resistance and firing a sharp pulse of current through the wire. As the AC voltage cycle drops back toward zero, the DIAC snaps shut again, waiting for the next 32V wave.The TRIAC’s Best FriendYou will almost never see a DB3 DIAC working alone; it is specifically designed to be the trigger mechanism for a heavy-duty TRIAC (like the BTA16 or MAC97A6).Why? Because TRIACs require a very sharp, clean spike of current to turn on properly. If you try to turn a TRIAC on slowly with a gentle voltage curve, the internal silicon will sit in a “half-on” state, causing it to overheat and violently destroy itself.In a standard dimmer circuit, a potentiometer fills up a capacitor. Once that capacitor reaches 32V, the DB3 DIAC breaks over, instantly dumping that stored energy directly into the TRIAC’s gate. This guarantees the TRIAC turns on instantly and safely, every single time.Key Features:Bidirectional Operation: Unlike a standard 1N4148 or 1N4007 diode, the DB3 has no cathode or anode. It triggers equally well in both the positive and negative swings of an AC sine wave.Symmetrical Triggering: The breakover voltage is highly symmetrical (typically within a ± 3V tolerance between the positive and negative cycles), ensuring smooth, flicker-free dimming.Rugged Axial Package: The sturdy DO-35 leads make it easy to prototype on breadboards or solder permanently into high-voltage PCB traces.Technical Specifications:Typical Breakover Voltage (VBO): 32VBreakover Voltage Range: 28V minimum, 36V maximumMaximum Breakover Current (IBO): 100 µARepetitive Peak On-State Current (ITRM): 2A (Pulse width 10µs)Power Dissipation (PC): 150 mWOperating Junction Temperature (Tj): -40°C to 125°CPackage Form: DO-35Ideal Applications:AC light dimmers (Incandescent and halogen phase-cutting)Speed controllers for universal AC motors (drills, ceiling fans, vacuums)Heating element controllers (kilns, soldering pots, incubators)Educational labs demonstrating AC phase-angle control and TRIAC gating
