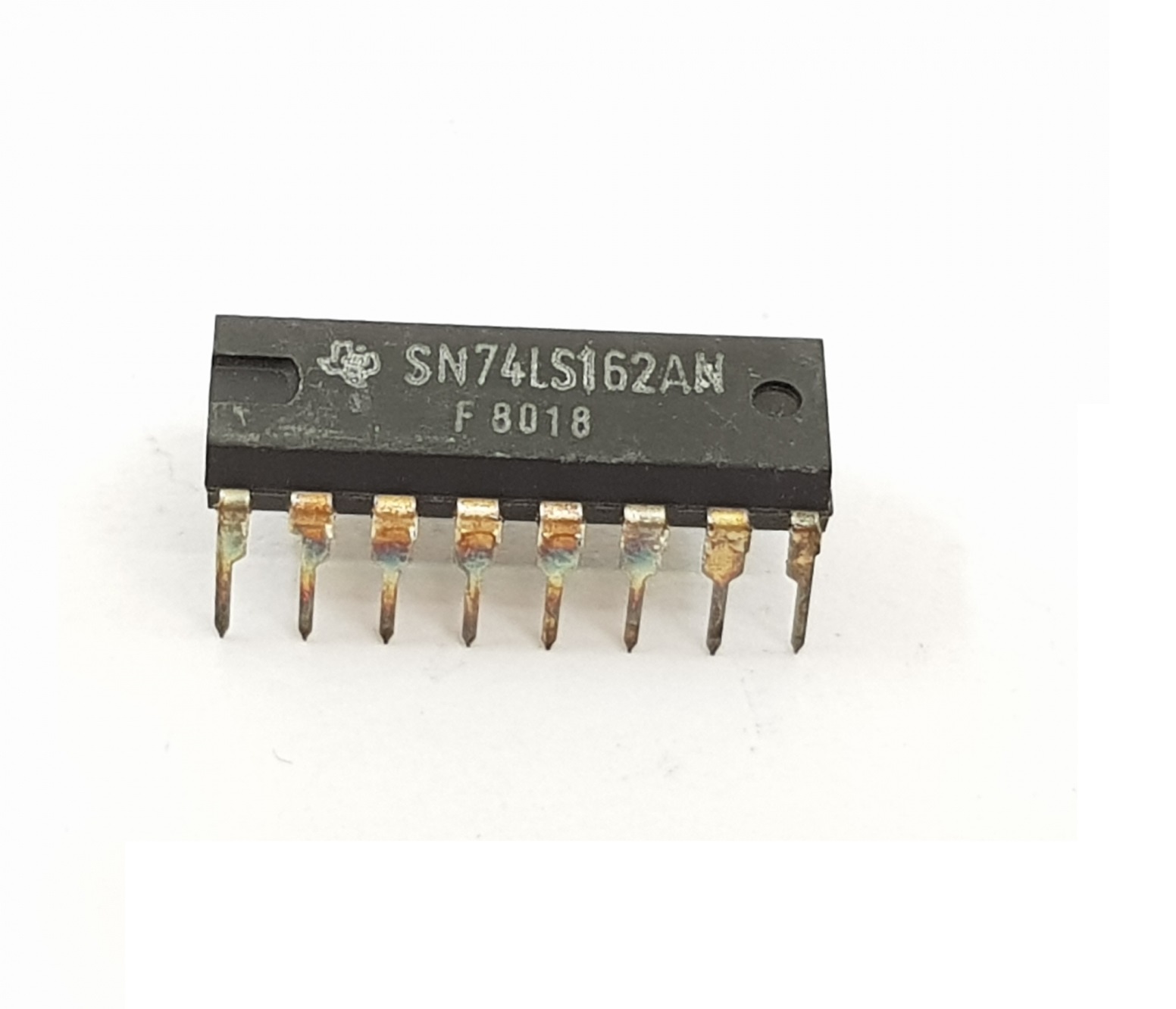

DescriptionThe SN74LS162  are high-speed 4-bit synchronous counters. They are edge-triggered, synchronously presettable, and cascadable MSI building blocks for counting, memory addressing, frequency division and other applications. LS162A count modulo 10 (BCD). The LS162A have a Synchronous Reset (Clear) input that overrides all other control inputs, but is active only during the rising clock edge.• Synchronous Counting and Loading • Two Count Enable Inputs for High Speed Synchronous Expansion • Terminal Count Fully Decoded • Edge-Triggered Operation • Typical Count Rate of 35 MHz • ESD > 3500 Volts2. Applications • Up Counters • Dual Up Counters
