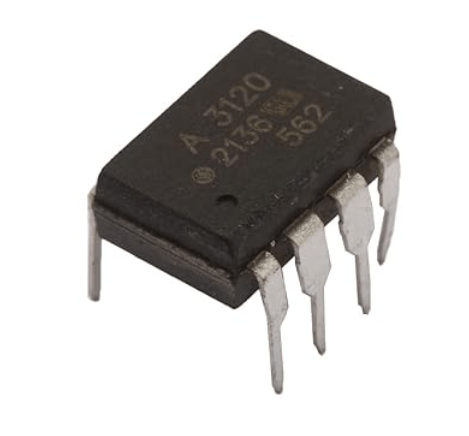

DescriptionHCPL-3120 / A3120 is an optically-isolated gate driver designed to drive power IGBTs and MOSFETs. It combines an input GaAsP LED, an internal high-current output stage, galvanic isolation between control and power sides, suited for inverter and motor drive applications.Key Electrical FeaturesMinimum peak output current: ~2.0 A (up to ~2.5 A peak)Operating supply voltage (VCC): ~15 V to 30 VMaximum low-level output voltage (VOL): approx. 0.5 VUnder-Voltage Lock-Out (UVLO) with hysteresisCommon Mode Rejection (CMR): ~15–25 kV/µsSwitching speed: ~500 ns maxOperating temperature: –40 °C to 100 °CIsolation voltage: typically ~3750 VrmsPackage: Through-hole DIP-8 package
